Product introduction
E-MEM Domestic membrane elements are mainly used in various household water purifiers, mineralized direct drinking machines, hospitals, laboratory and other small systems.
E-MEM Domestic membrane elements are mainly used in various household water purifiers, mineralized direct drinking machines, hospitals, laboratory and other small systems.
|
Membrane element model |
Water production GPD（m3/d） |
Stable desalination rate (%） |
Effective membrane area ft2(m2) |
Test pressure psi(MPa) |
Liquid composition |
|
|
EM-RO-1812-75 |
75(0.28) |
97.5 |
4.4 (0.41) |
70(0.48) |
250ppm NaCl |
|
|
EM-RO-1812-80 |
80(0.30) |
97.5 |
5.0(0.47) |
70(0.48) |
250ppm NaCl |
|
|
EM-RO-2012-150 |
150(0.57) |
97.0 |
6.6(0.62) |
70(0.48) |
250ppm NaCl |
|
|
EM-RO-2012-180 |
180(0.68) |
97.0 |
7.8 (0.72) |
70(0.48) |
250ppm NaCl |
|
|
EM-RO-3012-300 |
300(1.14) |
97.5 |
15.4 (1.43) |
90(0.62) |
250ppm NaCl |
|
|
EM-RO-3012-400 |
400(1.51) |
97.5 |
17.6(1.63) |
90(0.62) |
250ppm NaCl |
|
|
EM-RO-3012-600 |
600(2.28) |
96.0 |
22.0(2.04) |
90(0.62) |
250ppm NaCl |
|
|
EM-RO-3113-800 |
800(3.03) |
96.0 |
24.8(2.30) |
110(0.76) |
250ppm NaCl |
|
|
EM-RO-3113-1000 |
1000(3.79) |
96.0 |
29.7(2.76) |
110(0.76) |
250ppm NaCl |
|
|
EM-RO-2521-ULP |
300(1.14) |
99.0 |
14.0(1.30) |
150(1.03) |
1000ppm NaCl |
|
|
EM-RO-2540-ULP |
750(2.84) |
99.0 |
30.0(2.80) |
150(1.03) |
1000ppm NaCl |
|
|
EM-RO-4021-ULP |
950(3.61) |
99.0 |
35.5(3.30) |
150(1.03) |
1000ppm NaCl |
|
|
other test condition |
temperature(℃） |
25.0 ± 1.0 |
||||
|
Water IntakepH |
7.5 ± 0.5 |
|||||
|
Recovery rate(%） |
EM-RO-2521-ULP and EM-RO-4021-ULP The recovery rate is 8.0± 1.0, others are 15.0 ± 1.0 |
|||||
|
Provide form |
Dry membrane elements & wet membrane elements |
|||||
|
Membrane element model |
A(±2.0mm) |
B(±1.0mm) |
C1(±1.0mm) |
C2(±1.0mm) |
D(±0.1mm) |

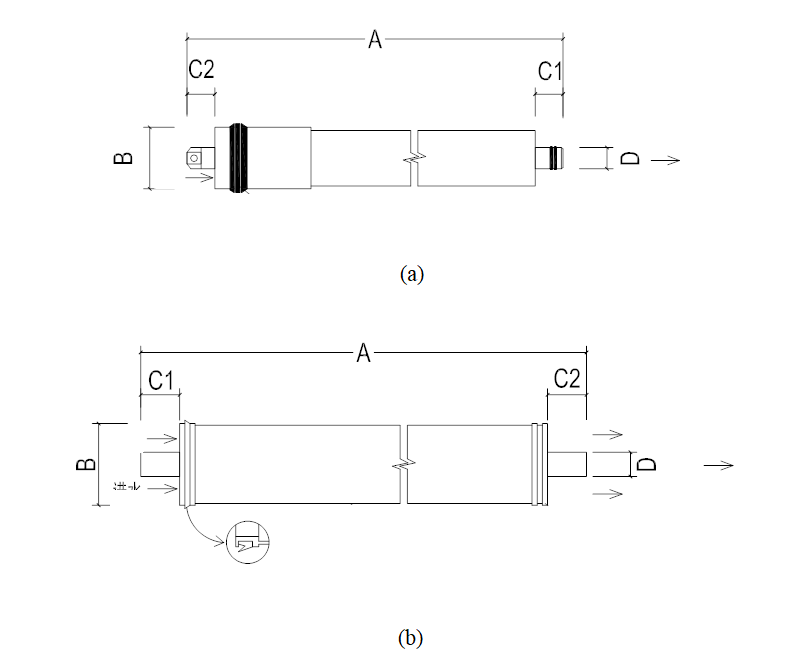

Schematic diagram |
|
EM-RO-1812-75 |
298 |
44.5 |
22.0 |
22.0 |
17.0 |
(a) |
|
EM-RO-1812-80 |
298 |
44.5 |
22.0 |
38.0 |
17.0 |
(a) |
|
EM-RO-2012-150 |
298 |
48.0 |
22.0 |
22.0 |
17.0 |
(a) |
|
EM-RO-2012-180 |
298 |
48.0 |
22.0 |
22.0 |
17.0 |
(a) |
|
EM-RO-3012-300 |
298 |
76.0 |
22.0 |
12.0 |
17.0 |
(a) |
|
EM-RO-3012-400 |
298 |
76.0 |
22.0 |
12.0 |
17.0 |
(a) |
|
EM-RO-3012-600 |
298 |
76.0 |
22.0 |
12.0 |
17.0 |
(a) |
|
EM-RO-3113-800 |
331 |
79.0 |
20.0 |
16.0 |
17.0 |
(a) |
|
EM-RO-3113-1000 |
331 |
79.0 |
20.0 |
16.0 |
17.0 |
(a) |
|
EM-RO-2521-ULP |
533 |
61.0 |
30.2 |
30.2 |
19.1 (outer diameter) |
(b) |
|
EM-RO-2540-ULP |
1016 |
61.0 |
30.2 |
30.2 |
19.1 (outer diameter) |
(b) |
|
EM-RO-4021-ULP |
533 |
100.0 |
26.7 |
26.7 |
19.1 (outer diameter) |
(b) |
|
Membrane type |
Polyamide Composite Membrane |
|
Maximum operating temperature |
113℉（45℃） |
|
Maximum operating pressure |
150 psi（10 bar） |
|
pH range, continuous operation |
3-10 a |
|
Maximum Influent SDI |
5 |
|
Free chlorine tolerance |
<0.1 ppm b |
a When pH > 10,the maximum allowable temperature for continuous operation is 95℉（35℃）.
bUnder certain conditions, the presence of free chlorine and other oxidants willlead to premature failure of membranes. Therefore, it is recommended that themembrane be pretreated to remove residual free chlorine before water comes intocontact with membranes.
E-MEM residential membrane components are mainly used in various household water purifiers, mineralized direct drinking machines hospitals, laboratory, other small systems.
